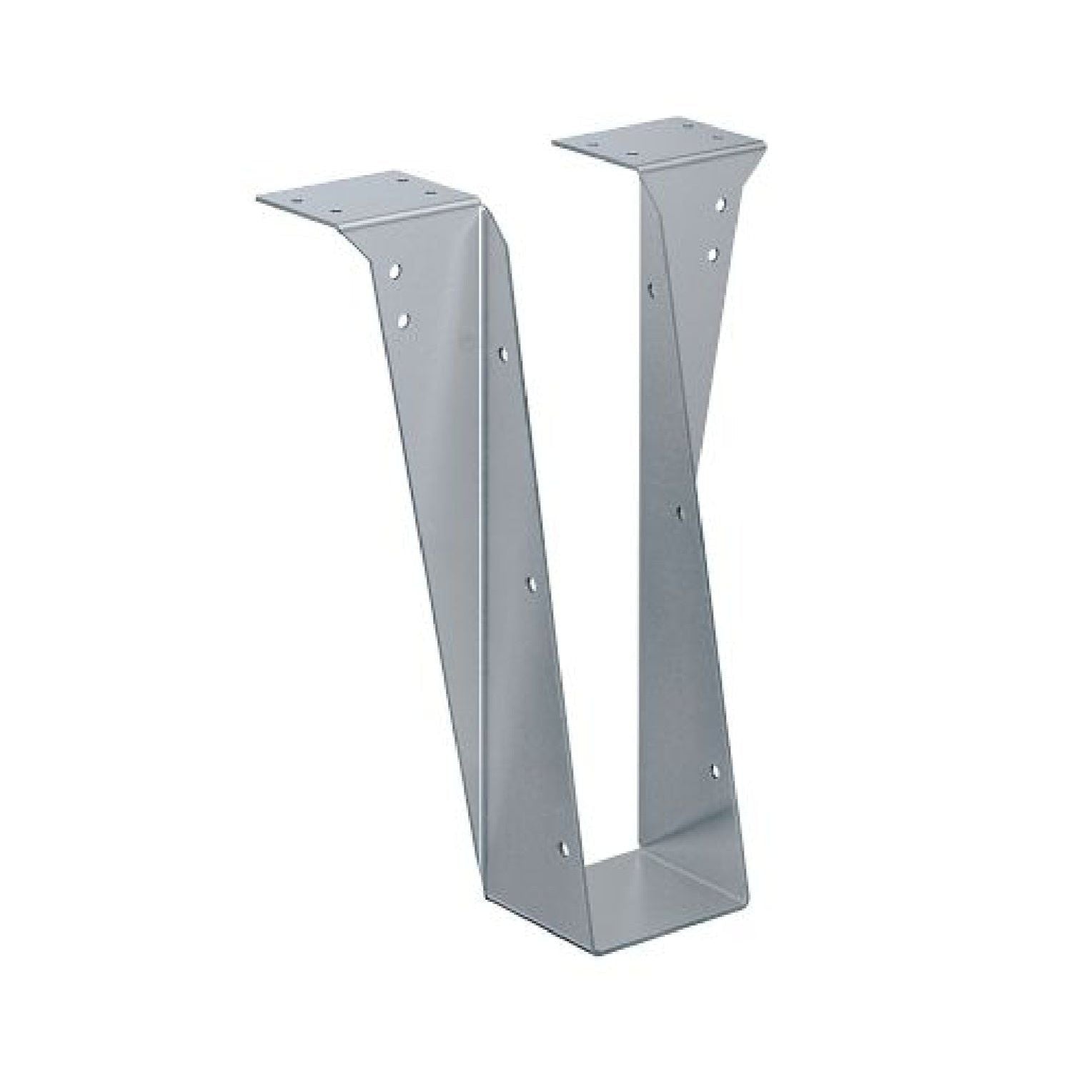

SIMPSON STRONG-TIE S/B2.12/8 2-1/8 x 8 Light Gauge Steel Hanger

The S/B installs to structural steel or cold-formed steel members for support of cold-formed steel joists. The design provides dimensional accuracy and helps to ensure proper bearing area and connection. These modifiable, high-capacity, top-flange hangers are manufactured with precision forming and quality control.

• Attaches to cold-formed steel members with screws or to structural steel with powder-actuated fasteners or welds
• Can be skewed to a maximum of 45°
• These load-rated hangers have been tested and code listed
• Material: 97mil (12 ga.)
• Finish: galvanized (G90)

Installation

Cold-Formed Steel:

• May be attached to cold-formed steel supporting members with screws to the face and top flanges and provide capacities for downward and uplift.

Structural Steel:

• May be attached to structural steel support members with powder-actuated fasteners or welds. For powder-actuated fasteners use PDPAT-62KP (0.157" x 5/8") and provide full penetration as required. For welds, use a minimum of 1/8" x 2" fillet weld on each top flange as required. Distribute the weld equally on both flanges. Capacities are provided for downward loads.
