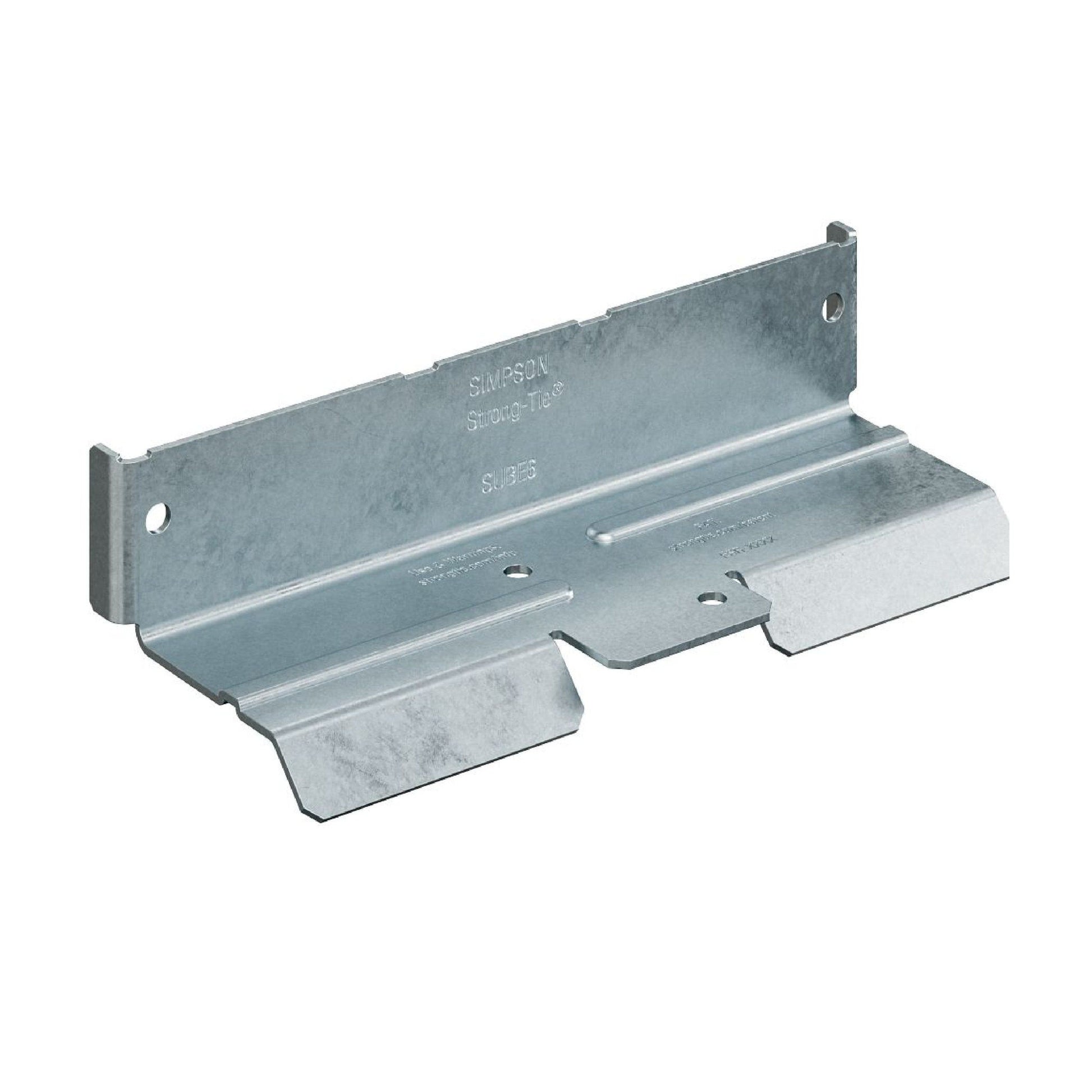

SIMPSON STRONG-TIE SUBE6-R50 6 in. End Bridging Connector Clip (50-Pack)
Couldn't load pickup availability
Description
Description
The SUBE wall-stud bridging connector for cold-formed steel (CFS) is designed to connect cold-rolled channel (CRC) at the end of a wall or single-stud jamb condition, or at the ends of panel walls, curtain walls or load-bearing conditions.
The connector is installed on the open side of the stud with screws to the stud lips, effectively limiting drywall buildup and creating a safer working environment as sharp-point screw perforations through the web are eliminated. Additionally, the SUBE does not require any special tools or clamping during installation as it features outer flanges that enable the connector to fit snugly over the open side of the stud. By eliminating the potential for drywall bulge and onsite safety issues, you'll be able to save time and improve efficiencies on the jobsite.
Key Features
- Tested to include stud-web strength and stiffness in the tabulated design values
- Design values ensure compliance with AISI S100 Sections C2.2.1 and C2.3 for axially and laterally loaded studs
- Flexible design solutions for web thicknesses of 33 mil (20 ga.) through 97 mil (12 ga.) and stud sizes of 3 5/8 in. and 6 in.
- Improves onsite safety by eliminating sharp-point screw perforations through the web in traditional clip attachments to wall-end stud webs
- Eliminates drywall bulge with no screw attachment to flange of stud
Material
- 54 mil (16 ga.), 50 ksi
Finish
- Galvanized (G90)
Installation

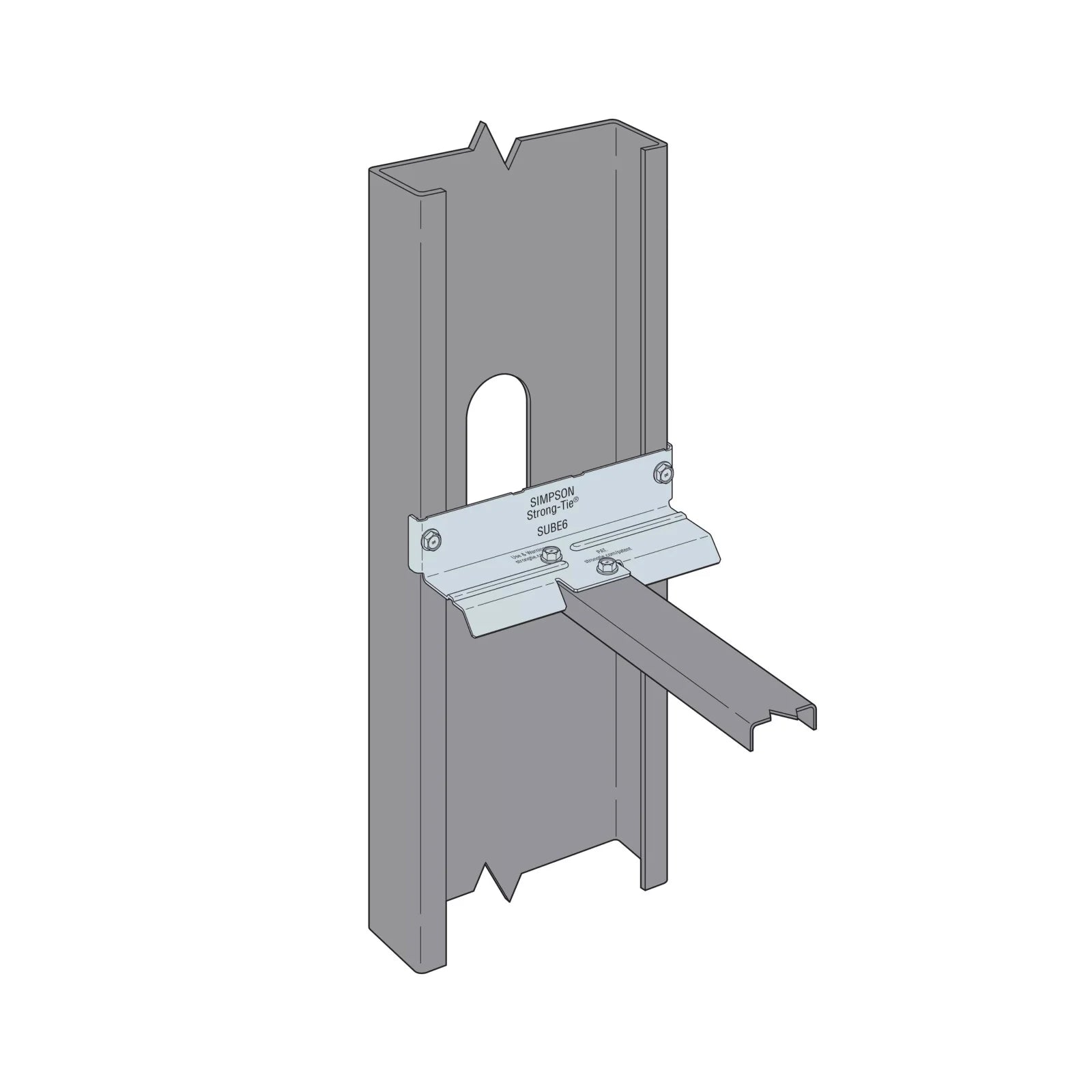

- The SUBE is connected to the open face of the stud and is attached to the lip of stud with (2) #10 screws. Fasten the u-channel to the clip with (2) #10 screws.
