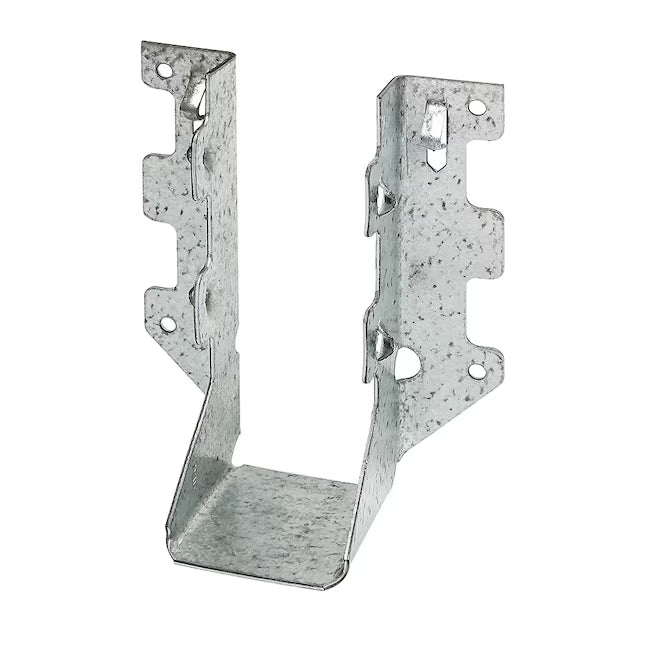

Simpson Strong-Tie ZMAX® LUS26Z Single 18 -Gauge Face mount joist hanger 2-in x 6-in.

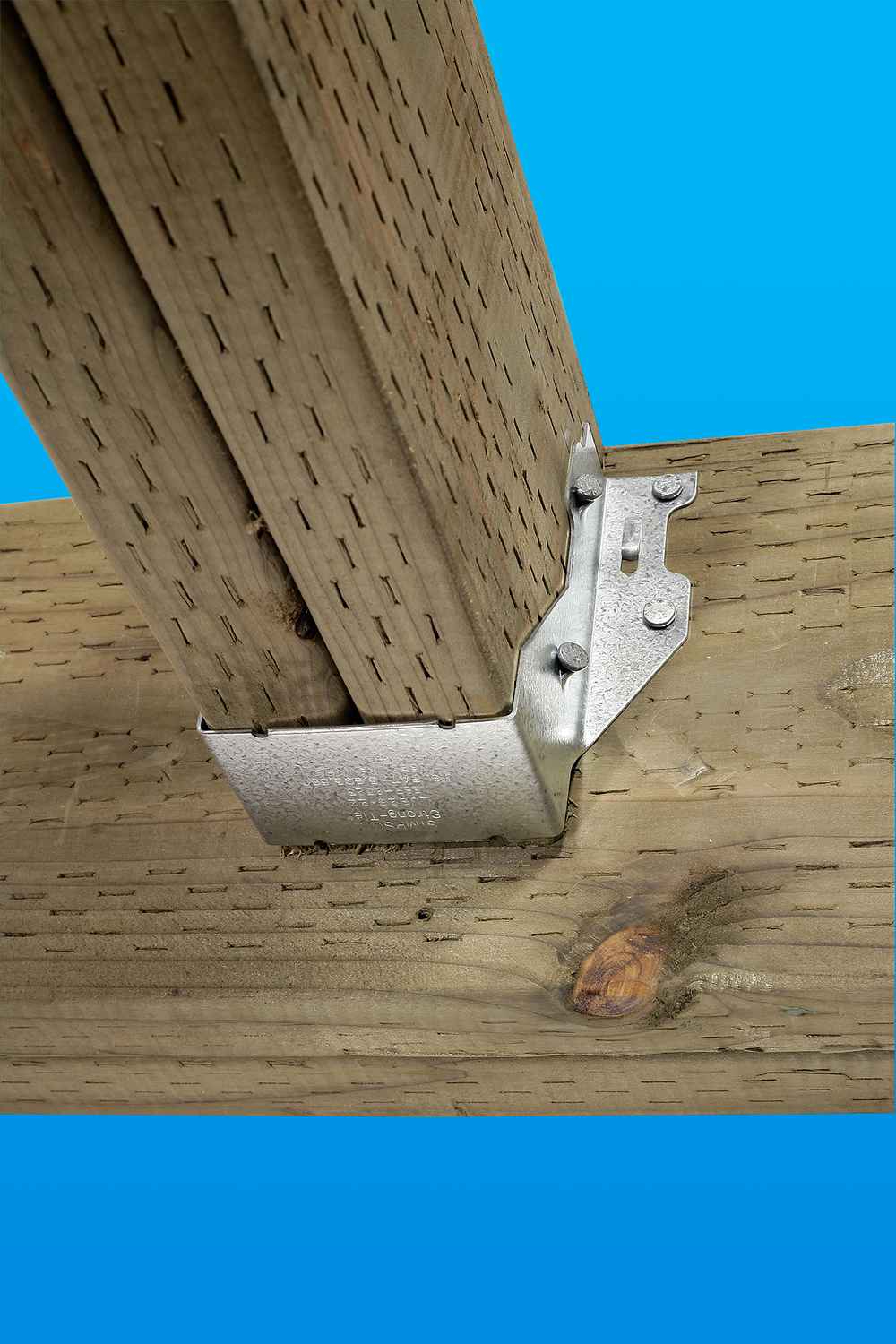

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. The LUS is an easy-to-install, economical hanger designed for common lumber sizes. This widely used hanger features double-shear nailing that distributes the load through two points on each joist nail for greater strength. This allows for fewer nails, faster installation and the use of all common nails for the same connection.
Patented double-shear nailing design provides greater strength with fewer nails

Speed prongs for fast and easy installation

Angled joist nailing easier in tight spaces

Do not bend or remove tabs

Nominal joist size: 2x6 and 2x8

Made from 18-gauge steel

ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications

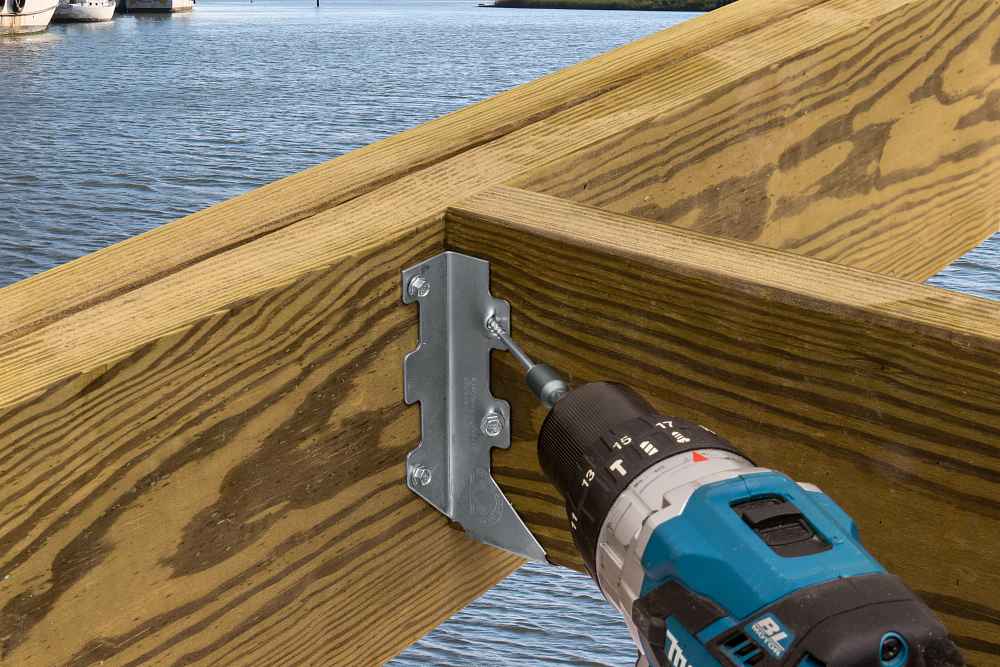

Install with 10d common nails or #9 x 2-1/2-in Strong-Drive SD screws
